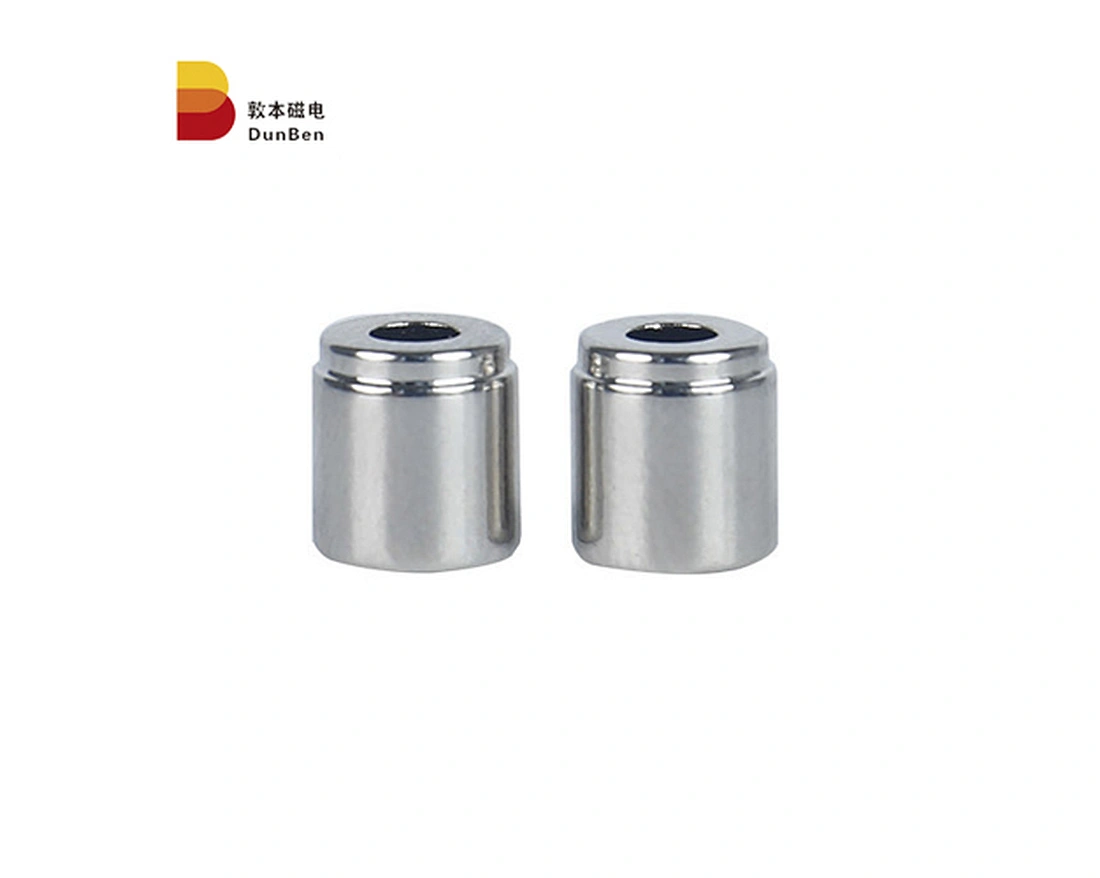

Ring shape neodymium Magnet manufacturer
db-69
Quantity:
1. n50 magnets
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of magnet
3.Shape of magnet
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
n50 magnets#magnet n50#ring magnet#
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of magnet
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Curie Temp. | Working Temp. | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tc | Tw | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/oC | %/oC | oC | oC | |
| N35 | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N38 | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N40 | 38-41 | 302-326 | 12.50-12.80 | 1250-1280 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N42 | 40-43 | 318-342 | 12.80-1320 | 1280-1320 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N45 | 43-46 | 342-366 | 13.20-13.80 | 1320-1380 | >11.0 | >876 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N48 | 46-49 | 366-390 | 13.80-14.20 | 1380-1420 | >10.5 | >835 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N50 | 47-51 | 347-406 | 13.9-14.3 | 1390-1430 | >10.5 | >836 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N30M | 28-32 | 223-255 | 10.90-11.70 | 1090-1170 | >10.2 | >812 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33M | 31-35 | 247-279 | 11.40-12.20 | 1140-1220 | >10.7 | >851 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N35M | 33-37 | 263-294 | 11.80-12.50 | 1180-1250 | >11.0 | >875 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N38M | 36-40 | 286-318 | 12.30-13.00 | 1230-1300 | >11.5 | >915 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N40M | 38-42 | 302-334 | 12.60-13.20 | 1260-1320 | >11.8 | >939 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N42M | 40-44 | 318-350 | 13.00-13.50 | 1300-1350 | >12.0 | >955 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N45M | 42-46 | 334-366 | 13.20-13.80 | 1320-1380 | >12.2 | >971 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33H | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.5 | >836 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N35H | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N38H | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N40H | 38-41 | 302-326 | 12.40-12.80 | 1240-1280 | >11.6 | >923 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N42H | 40-43 | 318-342 | 12.80-13.20 | 1280-1320 | >12.0 | >955 | >17 | >1360 | -0.11 | -0.58 | 320-350 | 120 |
| N33SH | 31-34 | 247-272 | 11.30-11.70 | 1130-1170 | >10.6 | >844 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N35SH | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >11.0 | >876 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N38SH | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.4 | >907 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N40SH | 38-41 | 302-326 | 12.10-12.80 | 1240-1280 | >11.8 | >939 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N28UH | 26-29 | 207-231 | 10.20-10.80 | 1020-1080 | >9.6 | >768 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N30UH | 28-31 | 223-247 | 10.80-11.30 | 1080-1130 | >10.2 | >816 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N33UH | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.7 | >856 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N28EH | 26-29 | 211-236 | 10.40-10.90 | 1040-1090 | >9.8 | >784 | >30 | >2388 | -0.11 | -0.51 | 350-380 | 200 |
3.Shape of magnet
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
