Rare Earth Segment Shape Neodymium Magnet Price
db-61
Quantity:
1.neodymium permanent magnet price
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of neodymium magnet n50
3.Shape of neodymium magnet n50

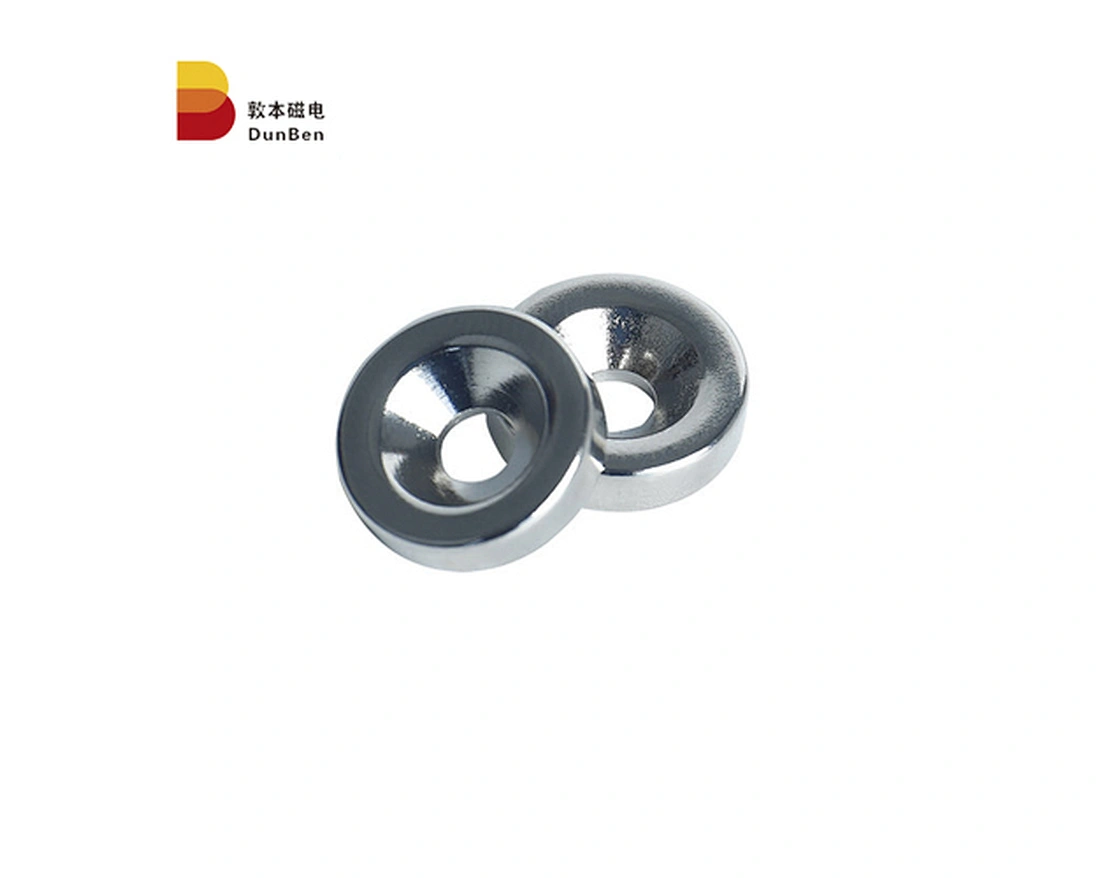

Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of neodymium magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of neodymium magnet n50
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Curie Temp. | Working Temp. | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tc | Tw | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/oC | %/oC | oC | oC | |
| N35 | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N38 | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N40 | 38-41 | 302-326 | 12.50-12.80 | 1250-1280 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N42 | 40-43 | 318-342 | 12.80-1320 | 1280-1320 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N45 | 43-46 | 342-366 | 13.20-13.80 | 1320-1380 | >11.0 | >876 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N48 | 46-49 | 366-390 | 13.80-14.20 | 1380-1420 | >10.5 | >835 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N50 | 47-51 | 347-406 | 13.9-14.3 | 1390-1430 | >10.5 | >836 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N30M | 28-32 | 223-255 | 10.90-11.70 | 1090-1170 | >10.2 | >812 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33M | 31-35 | 247-279 | 11.40-12.20 | 1140-1220 | >10.7 | >851 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N35M | 33-37 | 263-294 | 11.80-12.50 | 1180-1250 | >11.0 | >875 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N38M | 36-40 | 286-318 | 12.30-13.00 | 1230-1300 | >11.5 | >915 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N40M | 38-42 | 302-334 | 12.60-13.20 | 1260-1320 | >11.8 | >939 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N42M | 40-44 | 318-350 | 13.00-13.50 | 1300-1350 | >12.0 | >955 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N45M | 42-46 | 334-366 | 13.20-13.80 | 1320-1380 | >12.2 | >971 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33H | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.5 | >836 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N35H | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N38H | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N40H | 38-41 | 302-326 | 12.40-12.80 | 1240-1280 | >11.6 | >923 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N42H | 40-43 | 318-342 | 12.80-13.20 | 1280-1320 | >12.0 | >955 | >17 | >1360 | -0.11 | -0.58 | 320-350 | 120 |
| N33SH | 31-34 | 247-272 | 11.30-11.70 | 1130-1170 | >10.6 | >844 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N35SH | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >11.0 | >876 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N38SH | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.4 | >907 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N40SH | 38-41 | 302-326 | 12.10-12.80 | 1240-1280 | >11.8 | >939 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N28UH | 26-29 | 207-231 | 10.20-10.80 | 1020-1080 | >9.6 | >768 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N30UH | 28-31 | 223-247 | 10.80-11.30 | 1080-1130 | >10.2 | >816 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N33UH | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.7 | >856 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N28EH | 26-29 | 211-236 | 10.40-10.90 | 1040-1090 | >9.8 | >784 | >30 | >2388 | -0.11 | -0.51 | 350-380 | 200 |
3.Shape of neodymium magnet n50
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of neodymium magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
