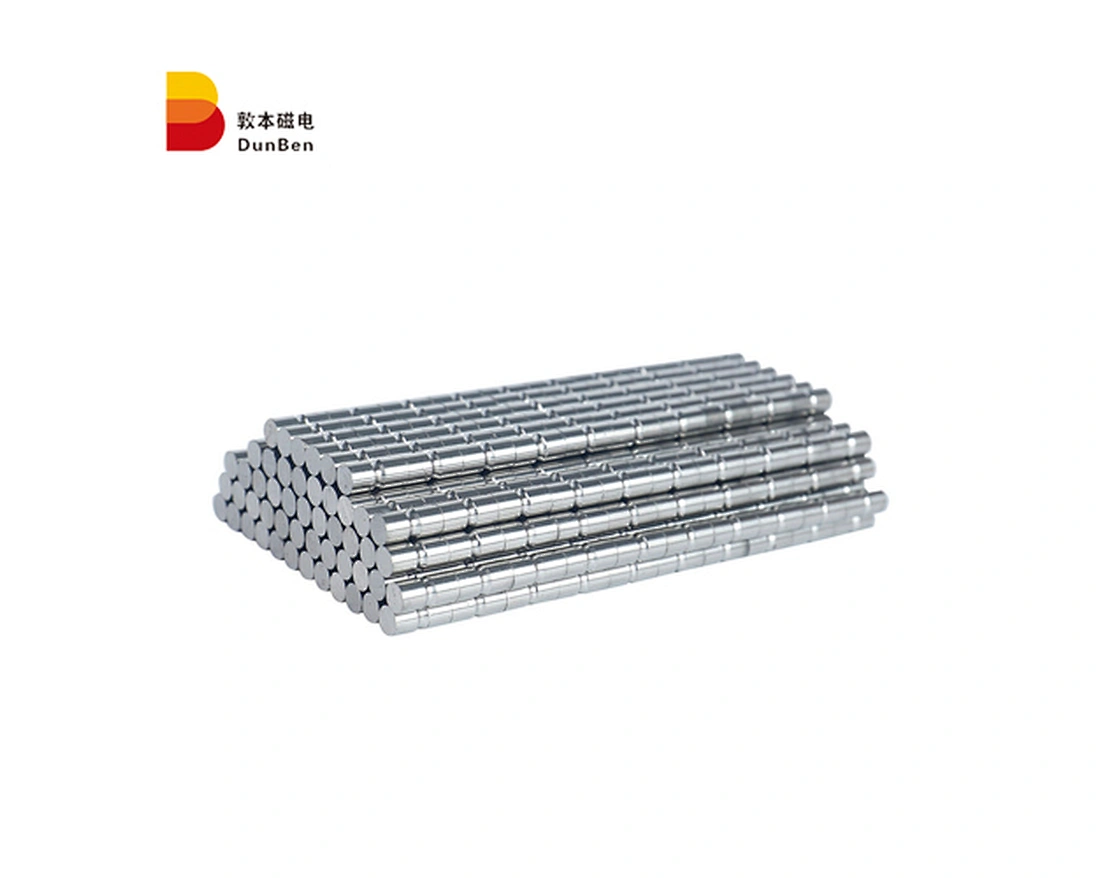

Rare Earth Ring Permanent Neodymium Magnet for Speaker
DB-62
Quantity:
1.Rare earth neodymium Magnet
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of rare earth Neodymium Magnet
3.Shape of rare earth Neodymium Magnet
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of rare earth Neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of Neodymium Magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of rare earth Neodymium Magnet
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Curie Temp. | Working Temp. | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tc | Tw | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/oC | %/oC | oC | oC | |
| N35 | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N38 | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N40 | 38-41 | 302-326 | 12.50-12.80 | 1250-1280 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N42 | 40-43 | 318-342 | 12.80-1320 | 1280-1320 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N45 | 43-46 | 342-366 | 13.20-13.80 | 1320-1380 | >11.0 | >876 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N48 | 46-49 | 366-390 | 13.80-14.20 | 1380-1420 | >10.5 | >835 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N50 | 47-51 | 347-406 | 13.9-14.3 | 1390-1430 | >10.5 | >836 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N30M | 28-32 | 223-255 | 10.90-11.70 | 1090-1170 | >10.2 | >812 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33M | 31-35 | 247-279 | 11.40-12.20 | 1140-1220 | >10.7 | >851 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N35M | 33-37 | 263-294 | 11.80-12.50 | 1180-1250 | >11.0 | >875 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N38M | 36-40 | 286-318 | 12.30-13.00 | 1230-1300 | >11.5 | >915 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N40M | 38-42 | 302-334 | 12.60-13.20 | 1260-1320 | >11.8 | >939 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N42M | 40-44 | 318-350 | 13.00-13.50 | 1300-1350 | >12.0 | >955 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N45M | 42-46 | 334-366 | 13.20-13.80 | 1320-1380 | >12.2 | >971 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33H | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.5 | >836 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N35H | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N38H | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N40H | 38-41 | 302-326 | 12.40-12.80 | 1240-1280 | >11.6 | >923 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N42H | 40-43 | 318-342 | 12.80-13.20 | 1280-1320 | >12.0 | >955 | >17 | >1360 | -0.11 | -0.58 | 320-350 | 120 |
| N33SH | 31-34 | 247-272 | 11.30-11.70 | 1130-1170 | >10.6 | >844 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N35SH | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >11.0 | >876 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N38SH | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.4 | >907 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N40SH | 38-41 | 302-326 | 12.10-12.80 | 1240-1280 | >11.8 | >939 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N28UH | 26-29 | 207-231 | 10.20-10.80 | 1020-1080 | >9.6 | >768 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N30UH | 28-31 | 223-247 | 10.80-11.30 | 1080-1130 | >10.2 | >816 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N33UH | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.7 | >856 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N28EH | 26-29 | 211-236 | 10.40-10.90 | 1040-1090 | >9.8 | >784 | >30 | >2388 | -0.11 | -0.51 | 350-380 | 200 |
3.Shape of rare earth Neodymium Magnet
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of rare earth Neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of Neodymium Magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
