neodymium magnets rare earth magnets supplier
db-101
Quantity:
1. Neodymium Permanent Magnet
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of N52 Neodymium Magnet
3.Shape of N52 Neodymium Magnet

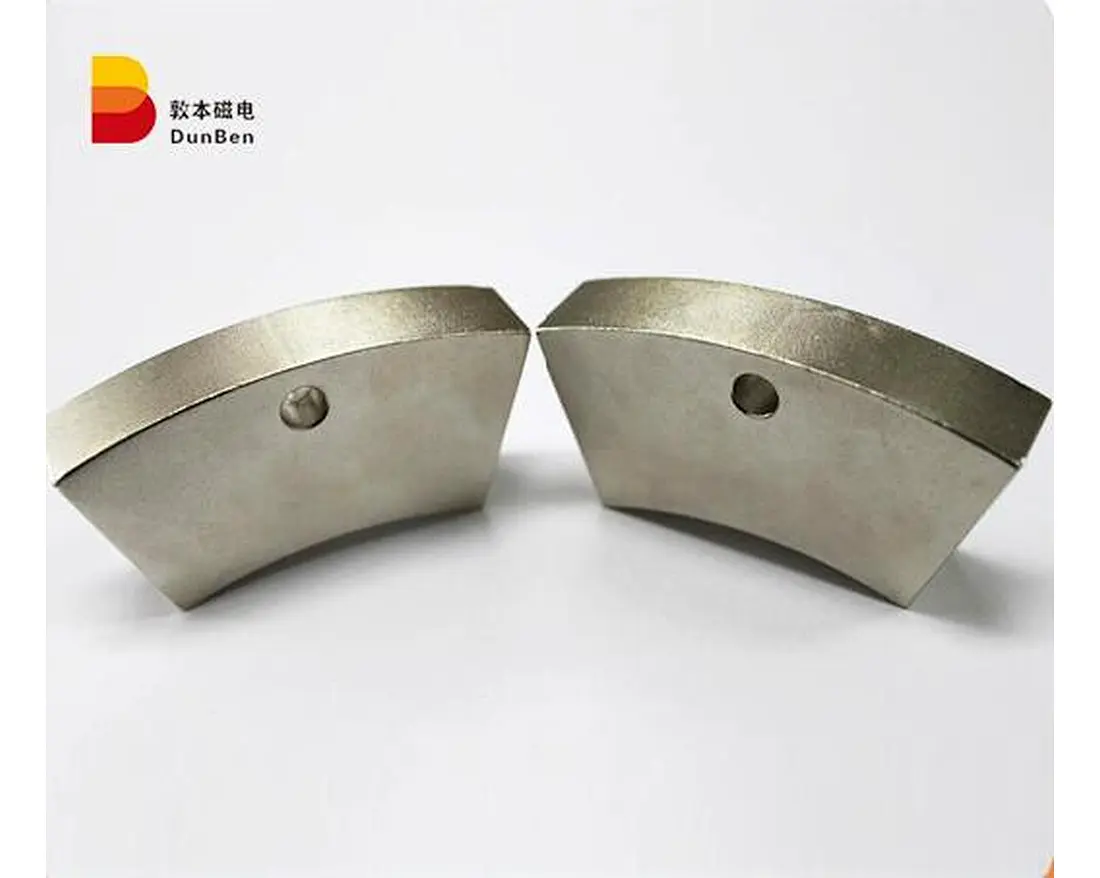

Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of N52 Neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more. 5.Directions of Magnetization
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of N52 Neodymium Magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
The third generation of rare earth-permanent magnetic NdFeB is the strongest performance of permanent magnetic in the contemporyera.It's process a high potential magnetic properties,can be easy to be cutting and drilling,so as processing of complex shape.
2.Grade of N52 Neodymium Magnet
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Curie Temp. | Working Temp. | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tc | Tw | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/oC | %/oC | oC | oC | |
| N35 | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N38 | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N40 | 38-41 | 302-326 | 12.50-12.80 | 1250-1280 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N42 | 40-43 | 318-342 | 12.80-1320 | 1280-1320 | >11.6 | >923 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N45 | 43-46 | 342-366 | 13.20-13.80 | 1320-1380 | >11.0 | >876 | >12 | >955 | -0.12 | -0.6 | 310 | 80 |
| N48 | 46-49 | 366-390 | 13.80-14.20 | 1380-1420 | >10.5 | >835 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N50 | 47-51 | 347-406 | 13.9-14.3 | 1390-1430 | >10.5 | >836 | >11 | >876 | -0.12 | -0.6 | 310 | 80 |
| N30M | 28-32 | 223-255 | 10.90-11.70 | 1090-1170 | >10.2 | >812 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33M | 31-35 | 247-279 | 11.40-12.20 | 1140-1220 | >10.7 | >851 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N35M | 33-37 | 263-294 | 11.80-12.50 | 1180-1250 | >11.0 | >875 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N38M | 36-40 | 286-318 | 12.30-13.00 | 1230-1300 | >11.5 | >915 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N40M | 38-42 | 302-334 | 12.60-13.20 | 1260-1320 | >11.8 | >939 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N42M | 40-44 | 318-350 | 13.00-13.50 | 1300-1350 | >12.0 | >955 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N45M | 42-46 | 334-366 | 13.20-13.80 | 1320-1380 | >12.2 | >971 | >14 | >1114 | -0.12 | -0.59 | 320 | 100 |
| N33H | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.5 | >836 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N35H | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >10.9 | >868 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N38H | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.3 | >899 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N40H | 38-41 | 302-326 | 12.40-12.80 | 1240-1280 | >11.6 | >923 | >17 | >1353 | -0.11 | -0.58 | 320-350 | 120 |
| N42H | 40-43 | 318-342 | 12.80-13.20 | 1280-1320 | >12.0 | >955 | >17 | >1360 | -0.11 | -0.58 | 320-350 | 120 |
| N33SH | 31-34 | 247-272 | 11.30-11.70 | 1130-1170 | >10.6 | >844 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N35SH | 33-36 | 263-287 | 11.70-12.10 | 1170-1210 | >11.0 | >876 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N38SH | 36-39 | 287-310 | 12.10-12.50 | 1210-1250 | >11.4 | >907 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N40SH | 38-41 | 302-326 | 12.10-12.80 | 1240-1280 | >11.8 | >939 | >20 | >1592 | -0.11 | -0.55 | 340-360 | 150 |
| N28UH | 26-29 | 207-231 | 10.20-10.80 | 1020-1080 | >9.6 | >768 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N30UH | 28-31 | 223-247 | 10.80-11.30 | 1080-1130 | >10.2 | >816 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N33UH | 31-34 | 247-271 | 11.30-11.70 | 1130-1170 | >10.7 | >856 | >25 | >1990 | -0.11 | -0.51 | 350-380 | 180 |
| N28EH | 26-29 | 211-236 | 10.40-10.90 | 1040-1090 | >9.8 | >784 | >30 | >2388 | -0.11 | -0.51 | 350-380 | 200 |
3.Shape of N52 Neodymium Magnet
Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
4. Coating of N52 Neodymium magnet
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
a.Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
6. Package of N52 Neodymium Magnet
a. Carton size is : 33X23X26CM
b. Gross weight is no more than 13KG/catron
