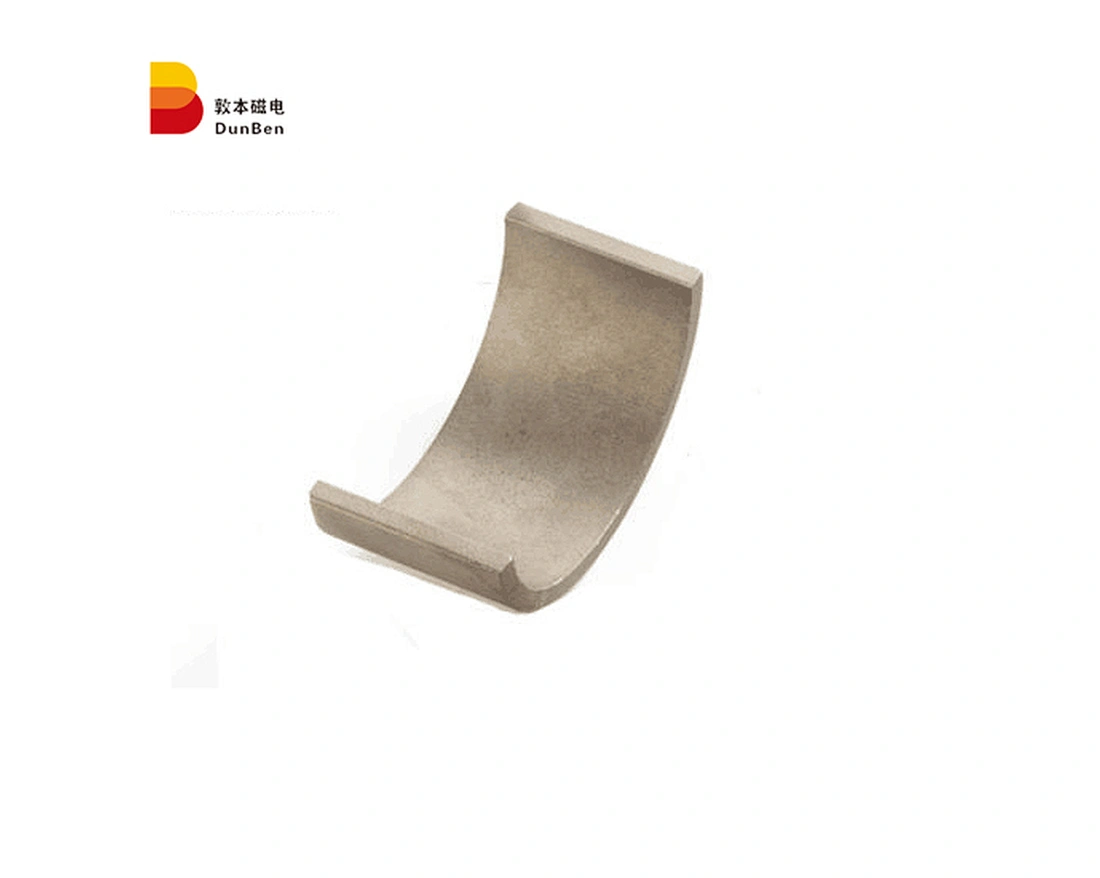

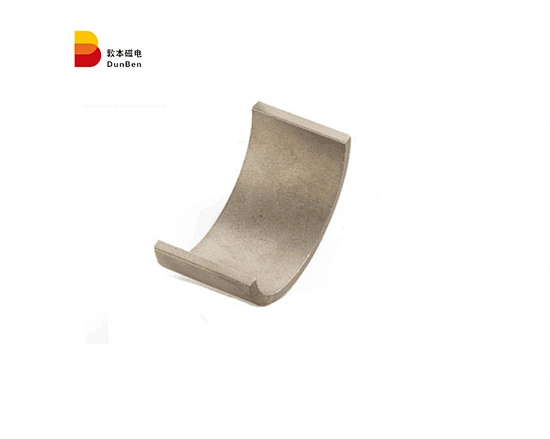

1.SmCo Magnets
SmCo magnets is a rare earth metal samarium and cobalt-based strategy elements, with iron, copper, zirconium, praseodymium and other metal materials ratio of melting into the alloy.
Grinding, pressing, sintering and aging made the SmCo magnet with higher magnetic properties (high energy product, high coercivity, high remanence).

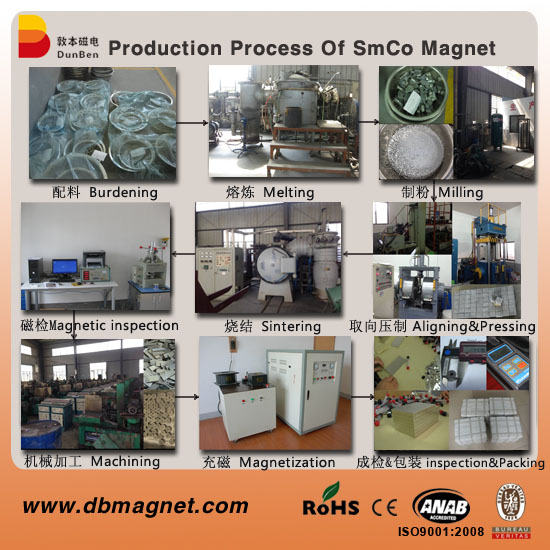

2.SmCo Magnets produce process
Raw material---Melting---Powder---Pressing---Sintering--Magnet testing---Cutting&grinding---Inspection---Packing

3.SmCo Magnets features
SmCo Magnets has very low temperature coefficient (-0.030% / °C), high temperature (maximum temperature is 350 °C), the working temperature above 180 °C.
SmCo Magnets also has the maximum energy product.
SmCo Magnet's temperature stability and chemical stability are better than NdFeB material.
SmCo Magnets also has a strong anti-corrosion and oxidation resistance

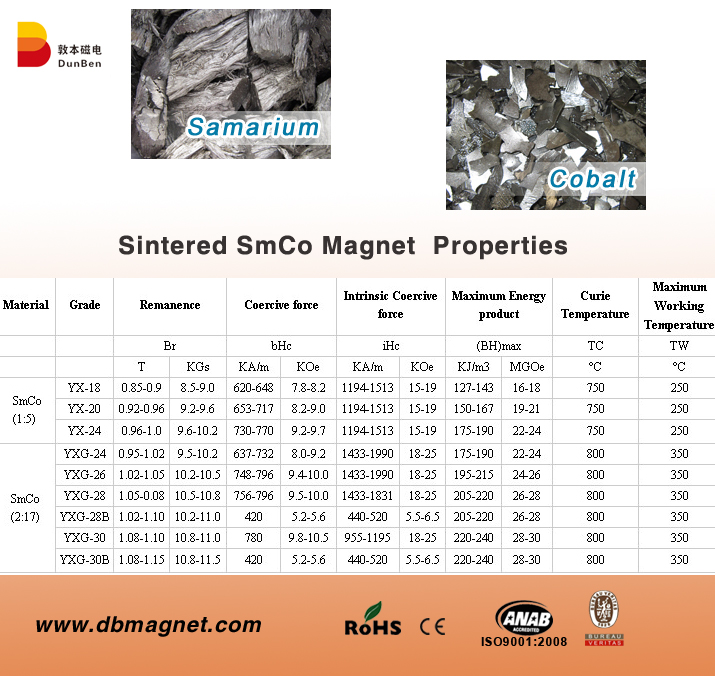

4.SmCo Magnets Characteristics

Grade	BR	HcB	HcJ	BH(Max)	Curie temp	Work temp	Alloy series
	MT Gs	KA/m Oe	KA/m Oe	KJ/m3 Mgoe	ºC	ºC
SmCo18	800 8000	640 8000	1430 18000	144 18	750	250	1:5
SmCo20	850 8500	640 8000	1590 20000	160 20	750	250
SmCo22	900 9000	650 8200	1430 18000	176 22	750	250
SmCo24	980 9800	676 8500	1430 18000	192 24	800	300	2:17
SmCo26L	1050 10500	410 5150	432 5430	208 26	800	300
SmCo26	1000 10000	726 9000	1194 15000	208 26	800	300
SmCo26M	1000 10000	716 9000	1590 20000	208 26	800	300
SmCo28	1030 10300	760 9500	1430 18000	224 28	800	300
SmCo28H	1030 10300	760 9500	1590 20000	224 28	800	300
SmCo30H	1100 11000	480 6000	560 7000	240 30	800	300

5.SmCo Magnets application
SmCo Magnet is widely used in motors, watch, transducers, instruments, positional detector, generators,
radar, etc.

6.SmCo Magnets package

Vacuum package	samll paper box	foam+ carton box
Moisture barrier bag	packing	finish

Carton size is: 33X23X26CM
Gross weight of each carton is no more than 15KG

7.SmCo Magnets delivery time
a. 7-10days for sample
b. 10-15days for large quanitiy
