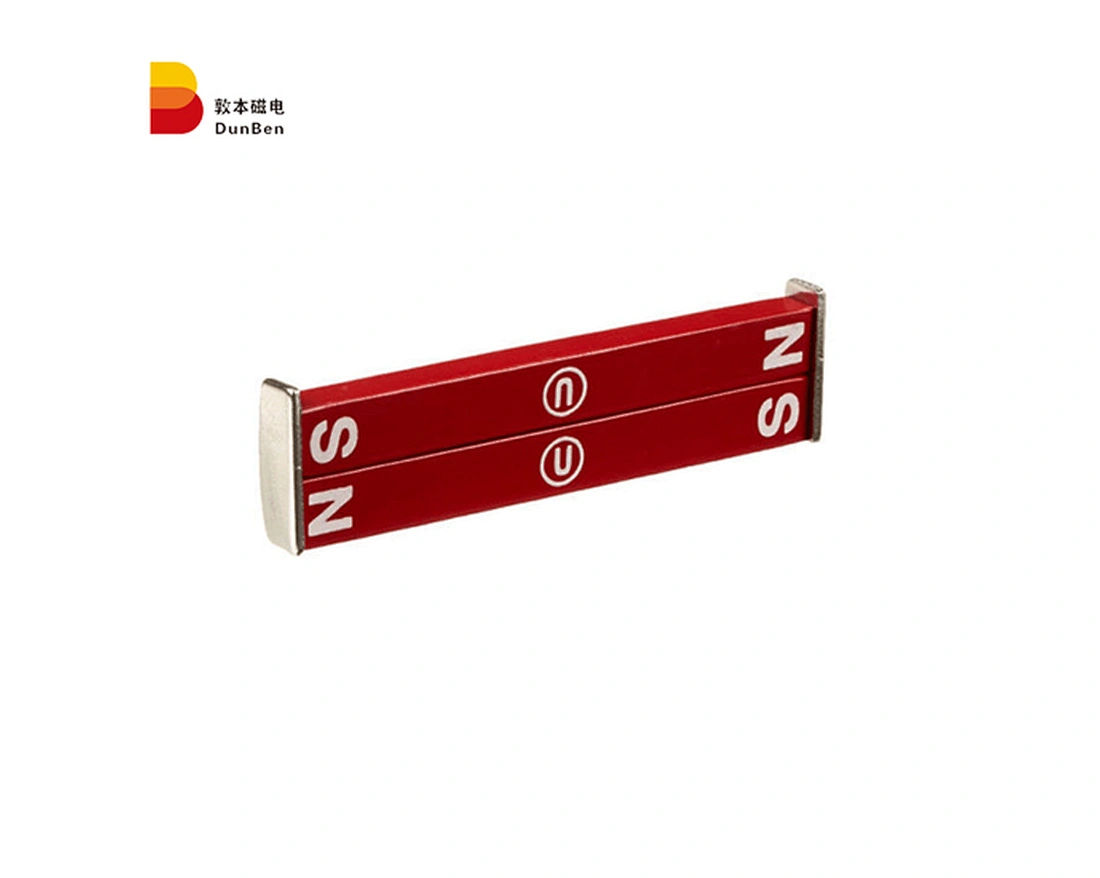

1. Cast AlNiCo magnet
AlNiCo magnet is hard and brittle. Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.

2.AlNiCo Magnet education Characteristics

Grade	Br	Hc	(BH)max	Curie temp	Work temp
	mT GS	ka/m OE	kj/m3 MGOe
LN10	600/6000	40/500	10.00/1.20	810	450
LNG12	700/7000	44/550	12.00/1.50	810	450
LNG13	680/6800	48/600	13.00/1.63	810	450
LNG18	900/9000	48/600	1800/2.25	850	450
LNG37	1200/12000	48/600	37.00/4.63	860	525
LNG40	1250/12500	48/600	40.00/5.00	860	525
LNG44	1250/12500	52/650	44.00/5.50	860	525
LNG52	1300/13000	56/700	52.00/6.5	860	525
LNG60	1330/13300	60/750	60.00/7.5	860	525
LNGT18	580/5800	90/1130	18.00/2.25	860	550
LNGT30	1100/11000	56/700	30.00/3.75	860	550
LNGT32	800/8000	100/1250	32.00/4.00	860	550
LNGT38	800/8000	110/1380	38.00/4.75	860	550
LNGT44	850/8500	120/1500	40.00/5.5	860	550
LNGT48	900/9000	120/1500	48.00/6.00	860	550

3.Alnico Magnet Surface Treatments
The corrosion resistance of AlNiCo is considered excellent , and no surface treatments are required. However, AlNiCo magnets are easily plated for cosmetic reasons if required.

4.AlNiCo Magnet appliaction
AlNiCo Magnet is widely used for instruments, autombile, teaching and electronics

5.Alnico Magnet Package
We will provide standard export package which is ok for sea or air shipment
Carton size is about 32X24X26XCM
Gross weight is no more than 13KG/carton

6.Qucik facts about us
·Was established in 2004, as trading company
·Factory was founded in 2010
·Specialized in developing and producing Bonded Magnet and NdFeB Magnet
·Have more than 100 employees (including 8 technicians and 15 salesman and 20 quality control)
